Ugoos AM1 and UT4 boxes release.

Our team did great work on these devices during the last half a year. We tried to put all the knowledge and experience in these series, took into consideration all questions, remarks and problems that was in previous boxes.

Ugoos designers also perform a brand new style, make this series more sharp, austere, they reduce amount of colors and concentrate on details and angles. This task force us to choose new materials for the boxes: now this is aluminum structure with central plastic insertion. Enjoy it!

Performing these boxes, we take most stable SoC in Rockchip and Amlogic product lines. All boxes powered by Android 5.1 lollipop.

Stock firmware already contains an OTA update function and ready for getting new firmware packages.

Soon we will see dualboot firmware with Xubuntu.

Final specs for UT4

RockChip 3368 Octa-core ARM Cortex-A53 up to 1.5GHZ (DVFS) 64bits

PowerVR G6110 GPU up to 700MHz. Supports OpenGL ES3.1, OpenCLES3 and DirectX 9.3 .HDCP2.2.

Ugoos UT4 box now equipped with 16 Gb  with 2 Gb RAM

2.4GHz/5GHz WiFi 802.11 b/g/n . Support  LAN 100M/1000M Base-T

Support MicroSD(TF) card,Max to 32GB

DC 5V/3A 3.5mm DC-in

UT4 box equipped with a fan, so it let heatsink work more effective, device can perform more stability at high load.

HDMI(1.4 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2), audio jack 3.5, 1*SPDIF

4*USB 2.0 Host

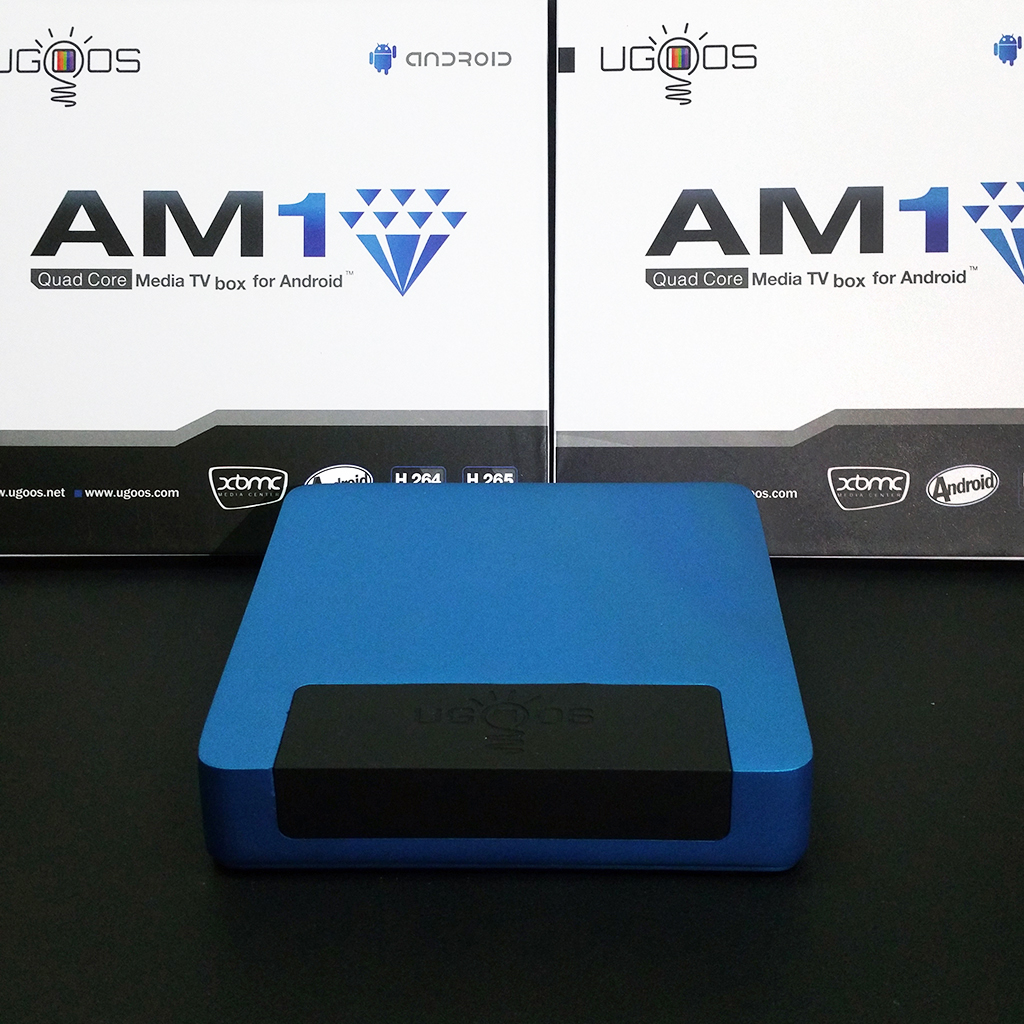

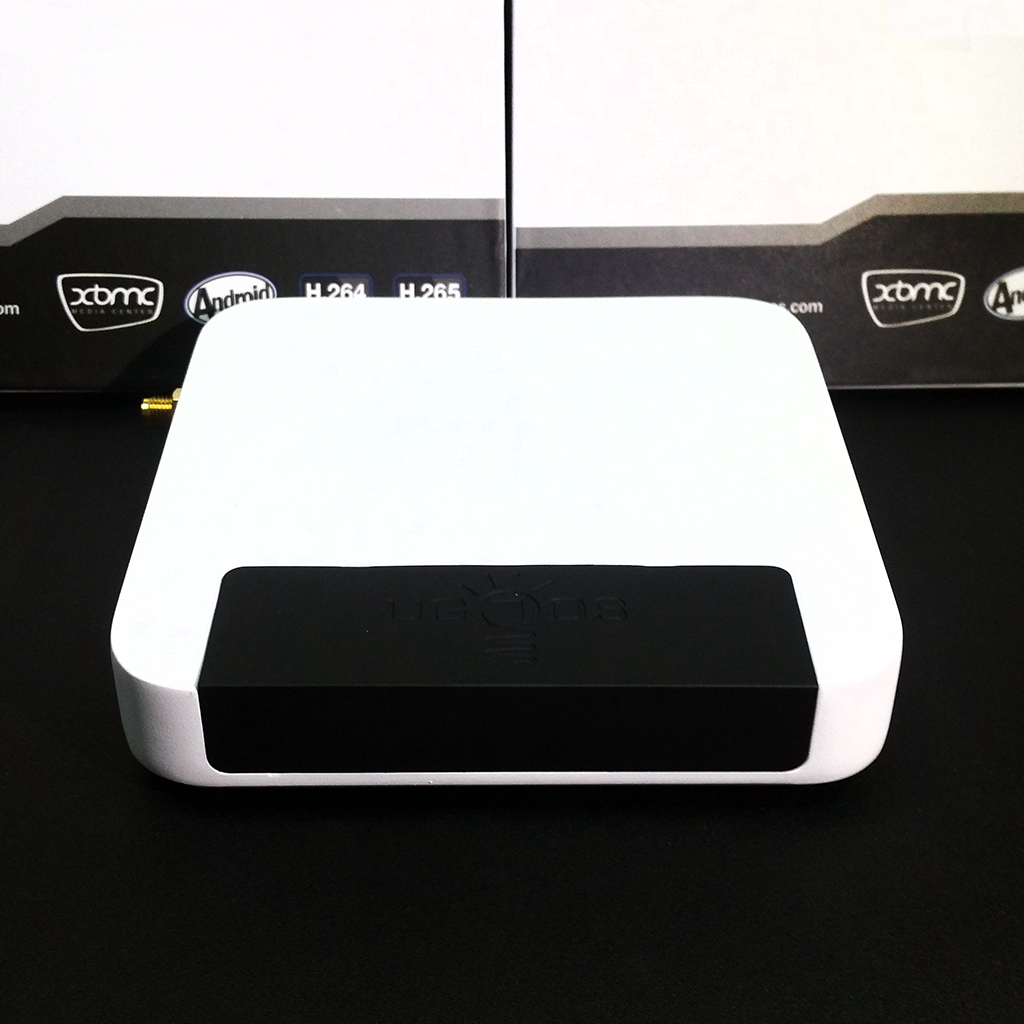

Final specs for AM1

(S905)Quad-core ARM Cortex-A53  up to 2.0GHZ (DVFS)

Penta -core ARM Mali 450  GPU up to 750MHz+ (DVFS),OpenGL ES1.1/2.0, Open VG 1.1 , 2250Mpix/sec and 165Mtri/sec

Ugoos AM1 box now equipped with 16 Gb  with 2 Gb RAM

2.4GHz/5GHz WiFi 802.11 b/g/n . Support  LAN 100M/1000M Base-T

Support MicroSD(TF) card,Max to 64GB

DC 12V/3A 3.5mm DC-in

HDMI(1.4 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2), 1*SPDIF

3*USB 2.0 Host

Enjoy our new brand devices!


Find us:

Facebook

Twitter

Youtube


Comment(S) (2)

  • Comment by R. D. | Tuesday, Dec 29 2015, 02:46PM

    I saw a teardown on the UT4. Very nice attention to cooling. Generous case vents on the bottom and side, the fan and some feet to raise the UT4 from the surface. Very well done Ugoos.

  • Comment by Sukru | Monday, Jan 25 2016, 04:09AM

    I have ordered an AM1 3 weeks ago and received it on the 23rd of January. The product looks sleek. Opened the box and amde initial configurations, connected to the network etc. There was an OTA update available. Downloaded it but update failed. Tried 3-4 times with no success. Then I donwnloaded the relevant update from Ugoos downloads page and that one failed as well. Basically error message says: "Error in /cache/update.zip status 7. Installation aborted." I rebooted the device with the stock firmware but not sure what to do next. Thanks in advance for any help.
