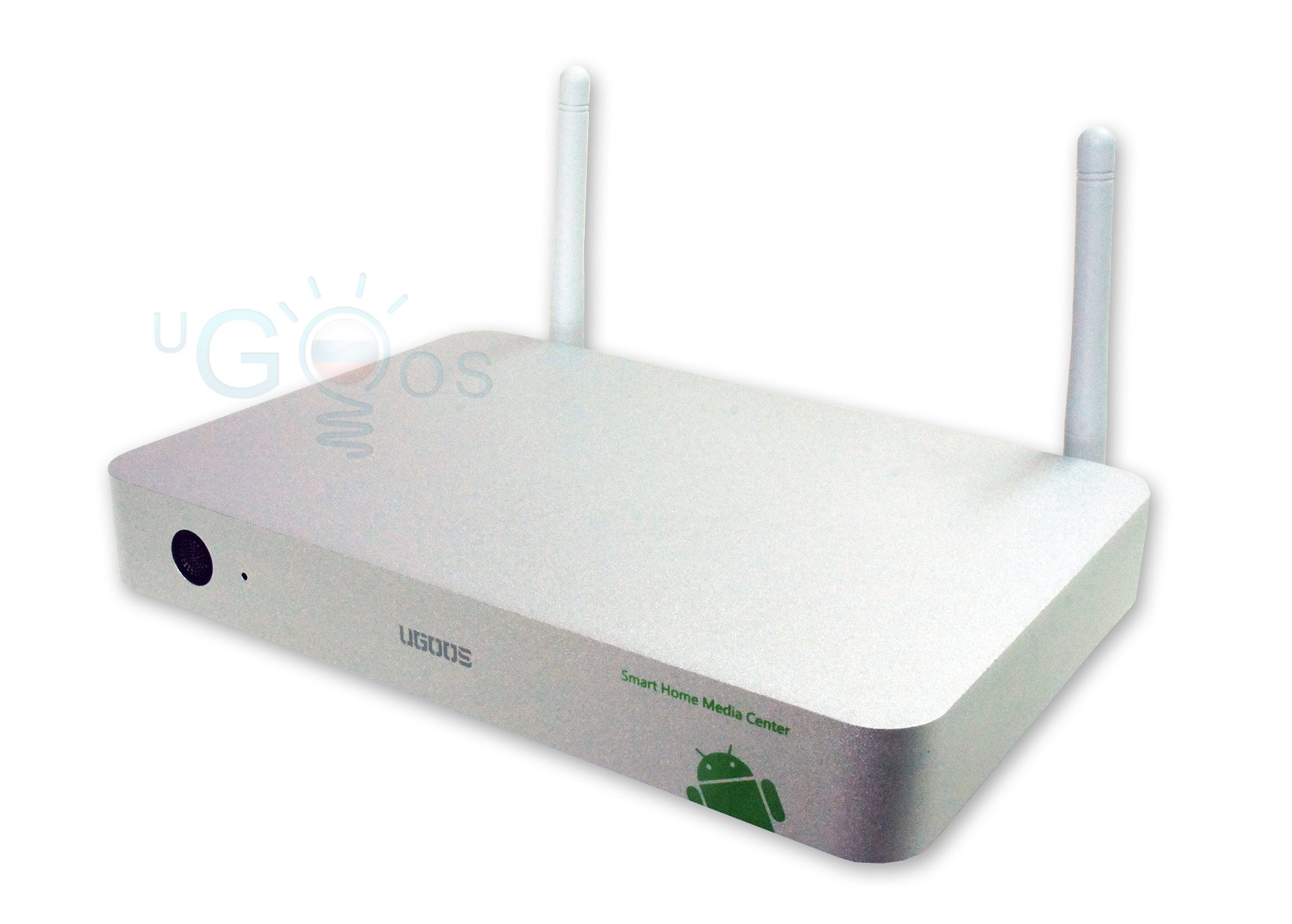

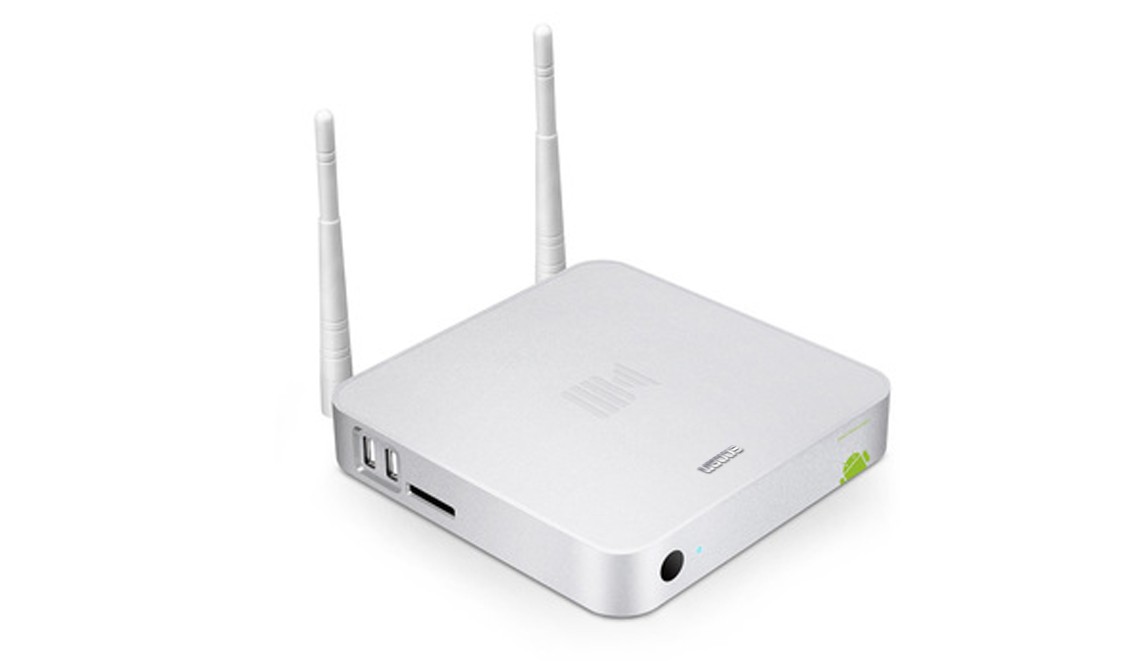

Ugoos UT1

Ugoos Brand UT1 Box - New 1.6GHz 2G+8G Android 4.2 Quad Core RK3188 Smart TV Box with Special Firmware

Description:

Ugoos Brand UT1 Box - New 1.6GHz 2G+8G Android 4.2 Quad Core RK3188 Smart TV Box with Special Firmware

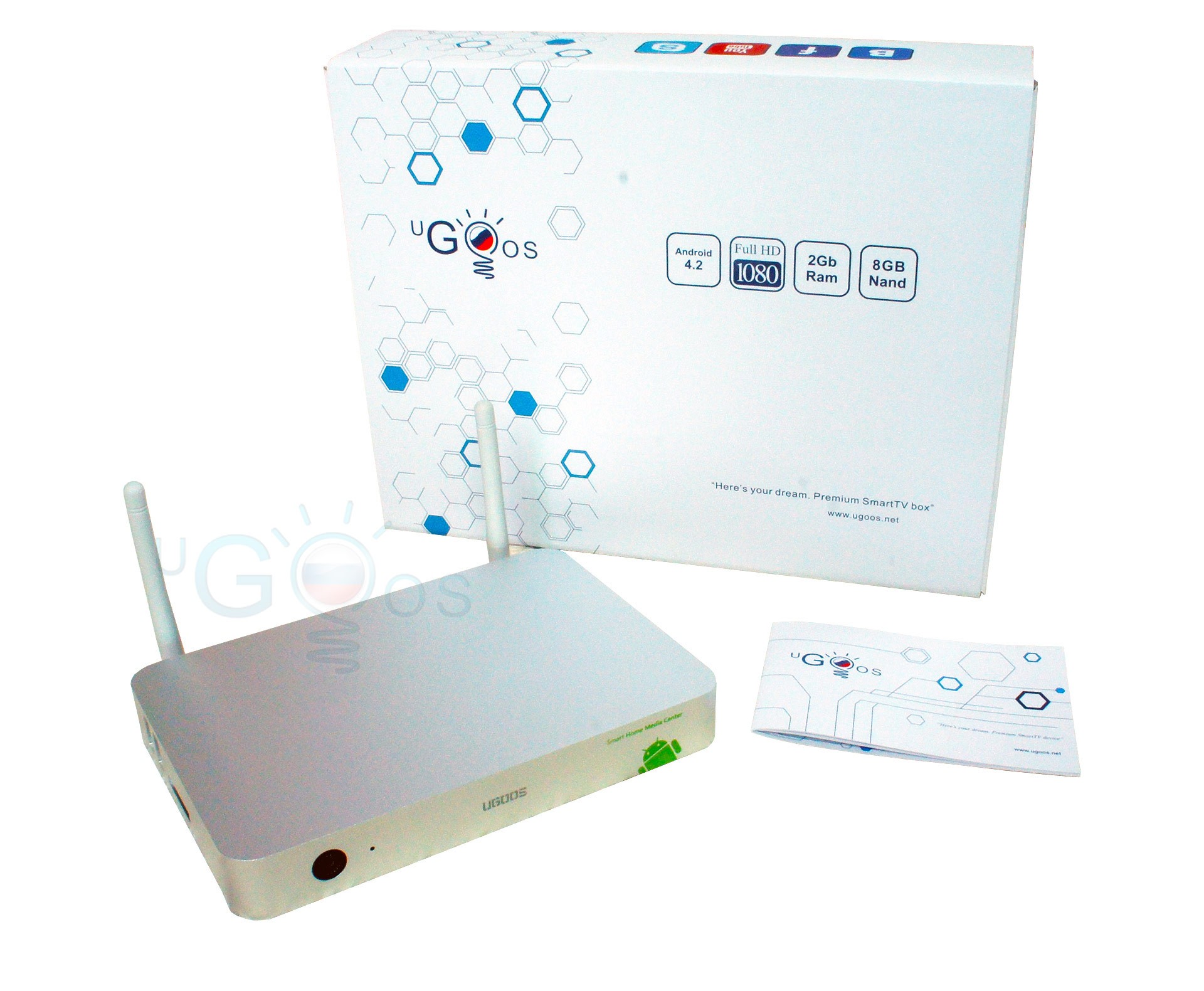

Accessory List:

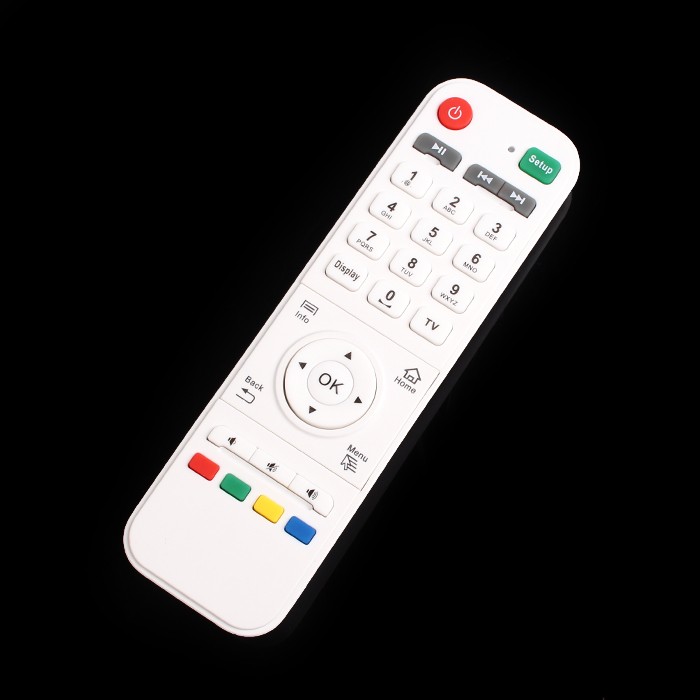

Standard Package: 1xQSG、1xAdapter(DC 5V/2A), 1xHDMI Cable,1x3.5mm AV Cable, 1x IR Remote Controller
Optional Package: 2.4G Wireless Air Mouse, 2.4G Wireless mouse and keyboard, USB Cable

Hardware Spec:

Hardware Specs:
Operation System	Android 4.2(Android 4.4)
Language	Chinese,English...Multi-Language support
Chipset	RK3188 28nm Cortex-A9 Quad Core 1.6ghz
GPU	Embedded 3D GPU Mali 400, High frequency 500Mhz, Support OpenGL ES 1.1/2.0 and OpenVG 1.1.
SDRAM	DDR3 1GB\2GB
Nand Flash	8GB Nand Flash (Optional:16GB)
Storage Extension	Support Micro SD(TF),Up to 32GB
Network	2.4GHZ WiFi 802.11 b/g/n, LAN 10/100M Base-T
Power Supply	DC 5V/2A

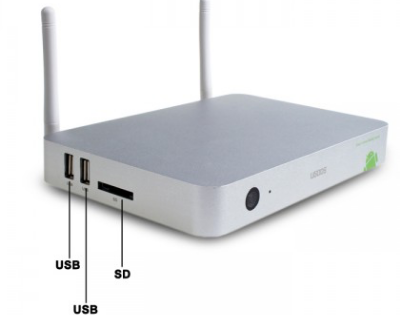

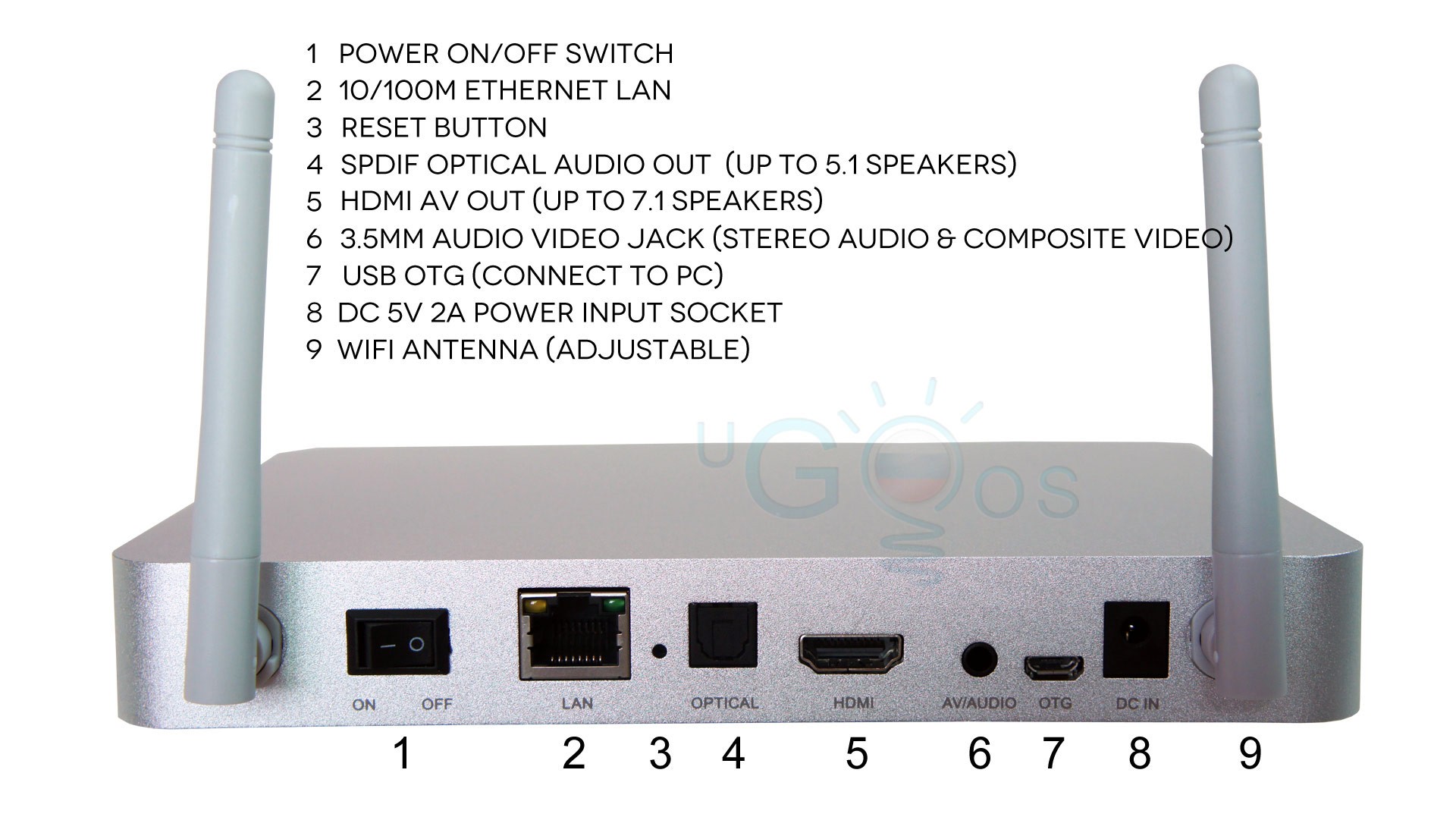

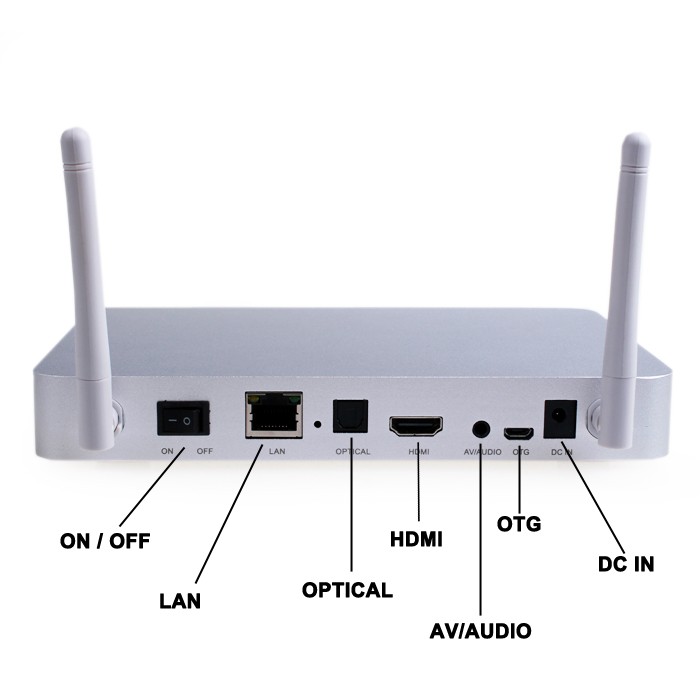

Interface:
HDMI Out	1 x HDMI(A type Male),HDMI1.3 Full HD 1920x1080P

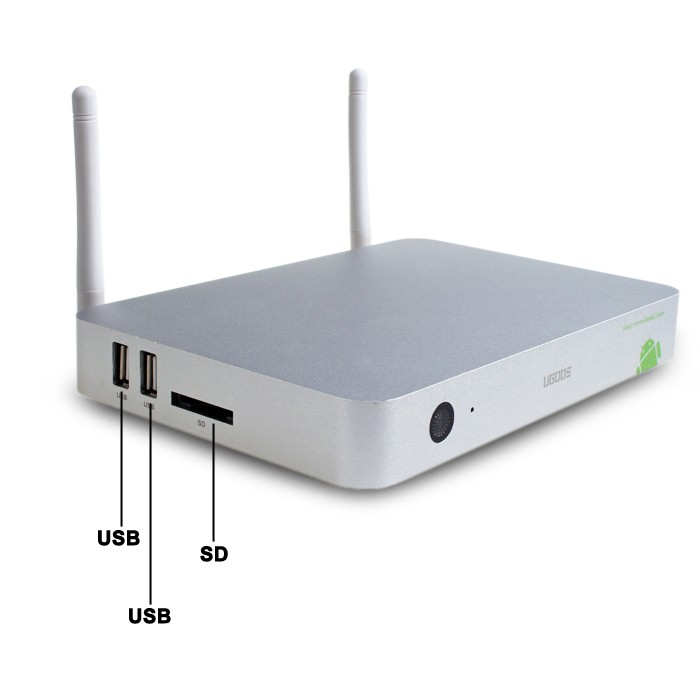

USB Port	2 x USB Host
Data Output	1 x SPDIF
Card Reader	1 x Micro SD card (TF card) reader
AV Out	1 x 3.5mm Headphone Jack
Network	1 x RJ45 LAN Port
Power Supply	1 x DC Jack(2.1mm)
Antenna	External WiFi antenna
Media Parameter:
Audio Container:	Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode，Support Synchronized lyrics and full-page lyric display.
Audio Out	HDMI Data Output
Video Decoder	MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1,
Video Decoder	RV, VP6/VP8, Sorenson Spark, MVC 1920x1080P 60FPS
Video Encoder	H.264，VP8，MVC(1080P)
Resolution	FullHD 1080P@30fps
H.264 Data Rate:	Up to 60Mbps
Image Browser	Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192x8192.
Text-Reading	Support TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install)。
Software Extension	Support Google Play APK install
DLNA,Wimo Protocol	Support DLNA,Wimo Protocol
Remote Control	Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller.
IM Software	Support Skype/QQ/MSN/GTALK (Depends on APK install)
Office Software	WORD/EXCEL/PDF(Depends on APK install)
Certificate	CE
Others Parameters:
Operation Temperature:	-10~40℃
Storage Temperature:	-20~50℃
Humidity Environment	5%-90%(No condensation)
Package
Dimension	142x95x21mm
Net Weight	TBD
Carton Box Size	L412W362H294mm
Gift Box Size	L200W160H80mm
