Description:

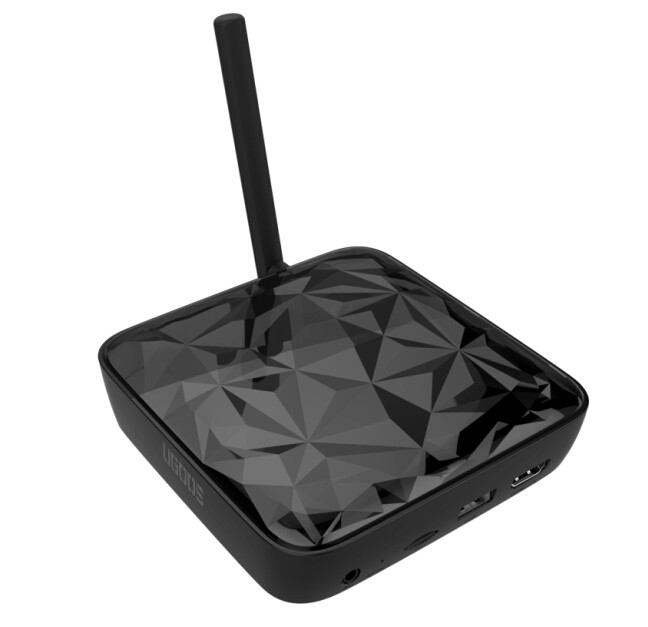

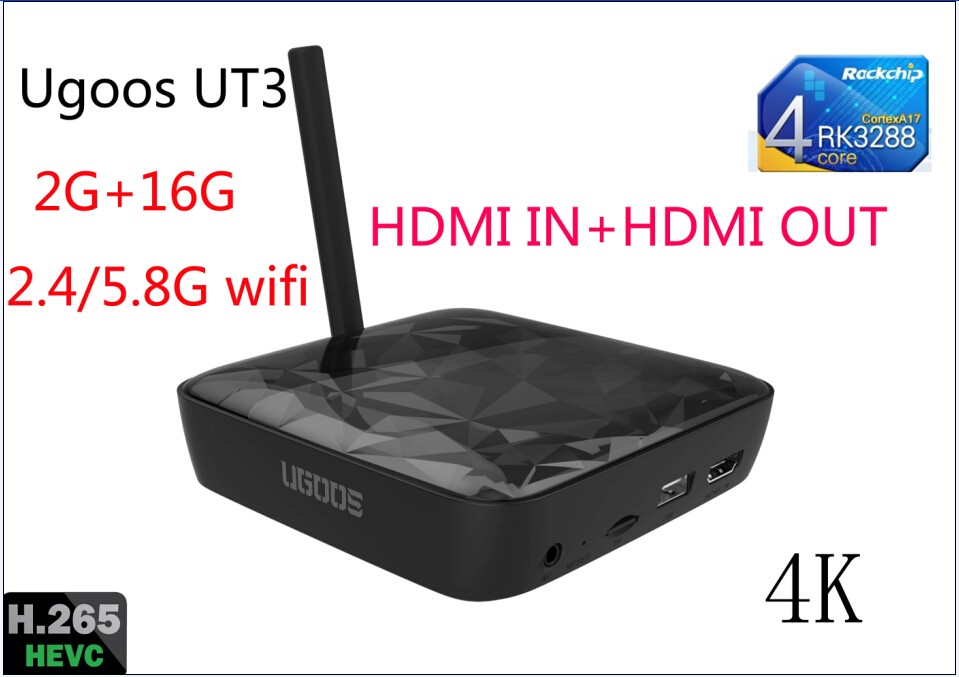

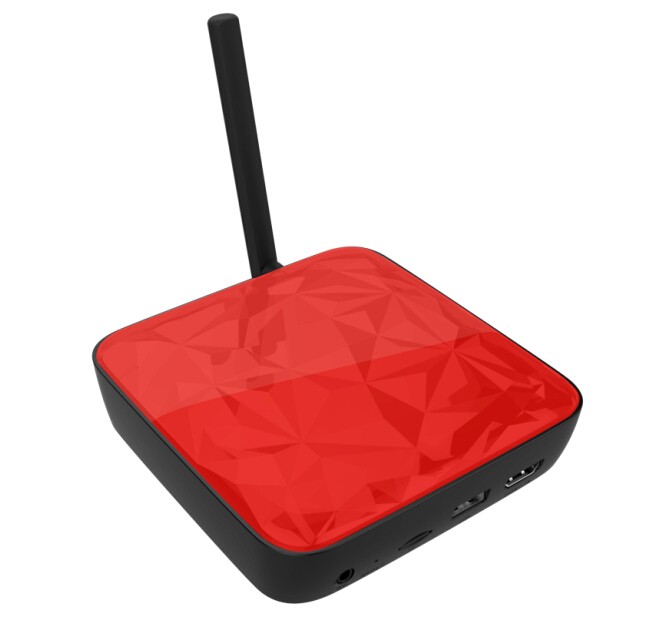

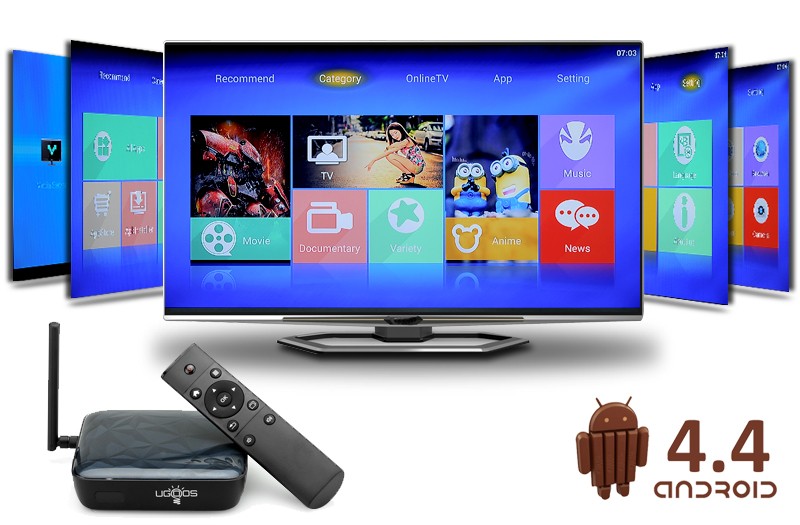

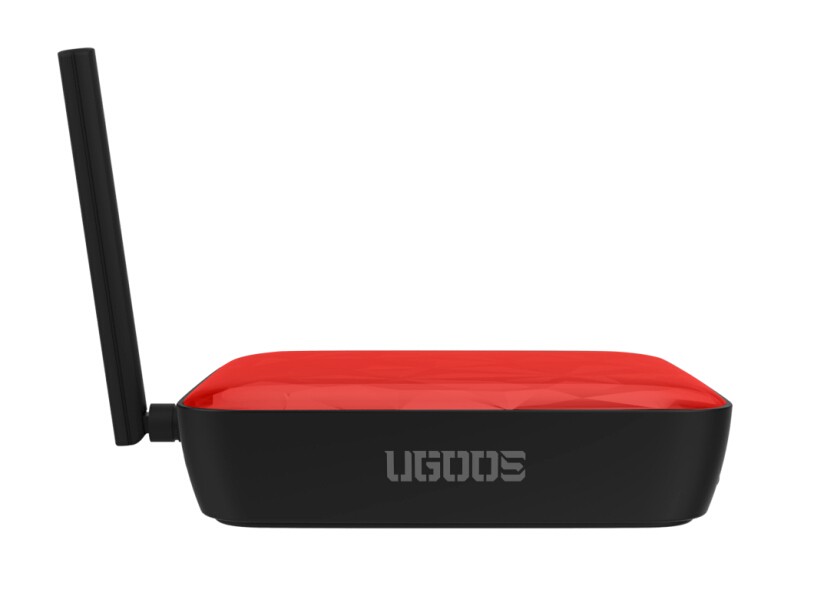

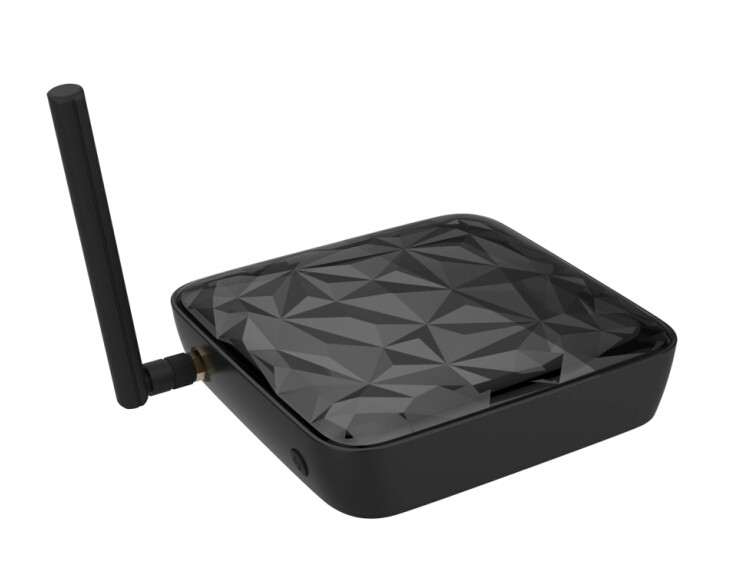

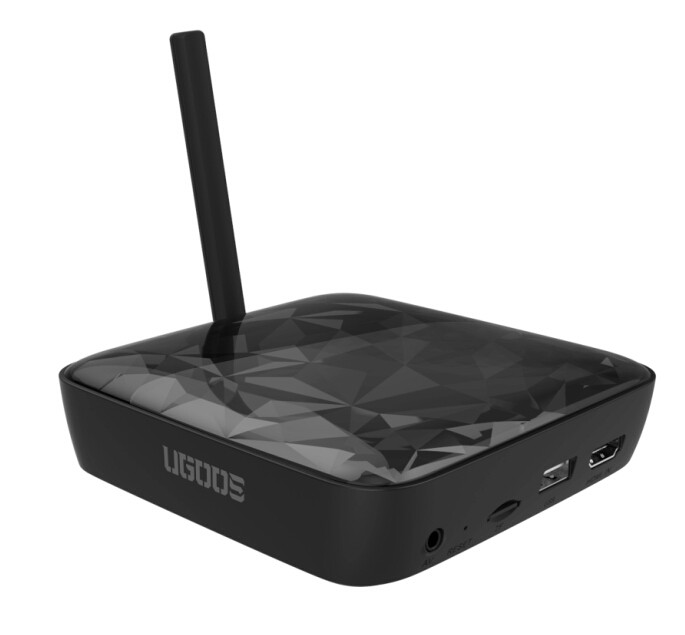

Ugoos Brand UT3 Box - New 1.8GHz 2G+16G Android 4.45.1.1 Quad Core RK3288 Smart TV Box with High Quality Firmware, Dualband 2.4/5Ghz WIFI, Bluetooth 4.0. H.265 Hardware Playback and 4K Output Support.
| Hardware Spec: | |
| Operation System | Android 4.4/5.1.1, Linux, Dualboot |
| Language | Chinese,English...Multi-Language support |
| Chipset | RK3288 28nm Cortex-A17 Quad core 1.8ghz |
| GPU | Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input，4Kx4Koutput |
| SDRAM | DDR3 2GB (optional:1GB) |
| Nand Flash | 16GB Nand Flash(optional:8/32/64GB) |
| Storage Extension | Support Micro SD(TF) , Up to 32GB |
| Network | 2.4GHz/5GHz WiFi 802.11 b/g/n and 802.11 a/c, Bluetooth 4.0. Support LAN 100M/1000M Base-T |
| Power Supply | DC 5V/2A |

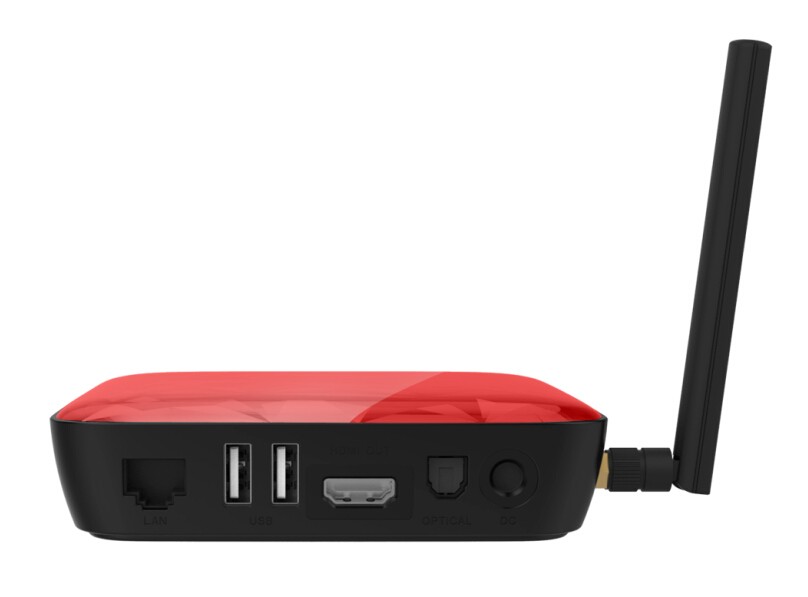

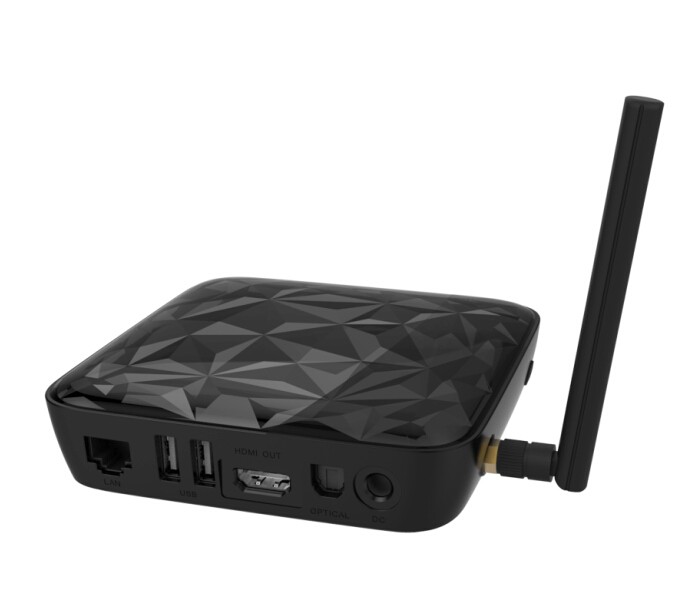

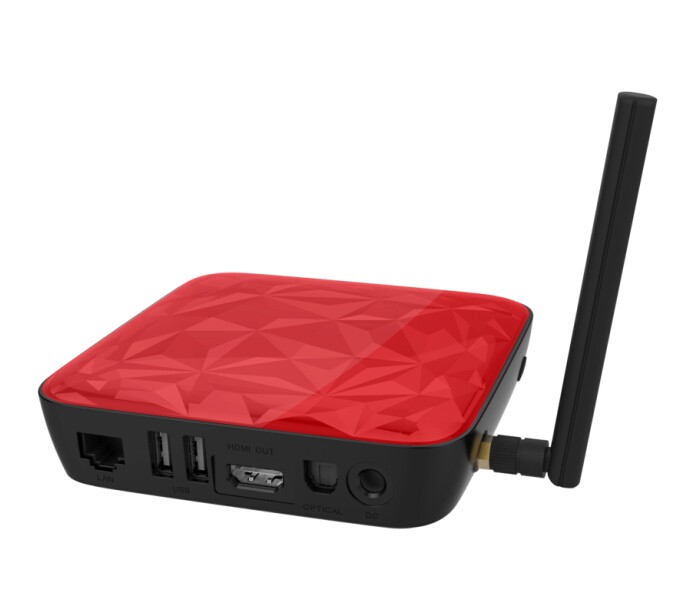

| Interface: | |
| HDMI | 1xHDMI Out (A type Female), HDMI1.4, Support 4K×2K decode output 1 x HDMI In (A type Female )support max up to 1080P(60Hz)input |
| USB Port | 3 x USB Host |
| Data Output | 1 x SPDIF |
| Card Reader | 1 x Micro SD card (MMC card) reader |
| AV Out | 1 x 3.5mm Headphone Jack |
| Network | 1 x RJ45 LAN Port |
| Power Supply | 1 x DC Jack(2.1mm) |
| Antenna | External DualBand WiFi Antenna |
| Media Parameter: | |
| Audio Container: | Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode，Support Synchronized lyrics and full-page lyric display. |
| Audio Out | HDMI Data Output |
| Video Decoder | MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, |
| Full video format decoding support. Support H.265 hardware decoding. Support format MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC |
|
| Video Encoder | H.264，H.265,VP8，MVC(1080P) |
| Resolution | HDMI output： Support 4Kx2K ( 3840*2160) |
| H.264, H265 Data Rate: | Up to 60Mbps |
| Image Browser | Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192x8192. |
| Text-Reading | Support TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install)。 |
| Software Extension | Support Google Play APK install |
| DLNA,Wimo Protocol | Support DLNA,Wimo Protocol |
| Remote Control | Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller. |
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) |
| Office Software | WORD/EXCEL/PDF(Depends on APK install) |
| Certificate | CE |
| Others Parameters: | |
| Operation Temperature: | -10~40℃ |
| Storage Temperature: | -20~50℃ |
| Humidity Environment | 5%-90%(No condensation) |
| Package: | |
| Dimension | 122*116*34mm |
| Net Weight | 165gm |
| Carton Box Size | |
| Gift Box Size | 160*160*80mm |
| Gross weight | 610gm |
Note: The new batch for UT3 will be available on around 5th November.

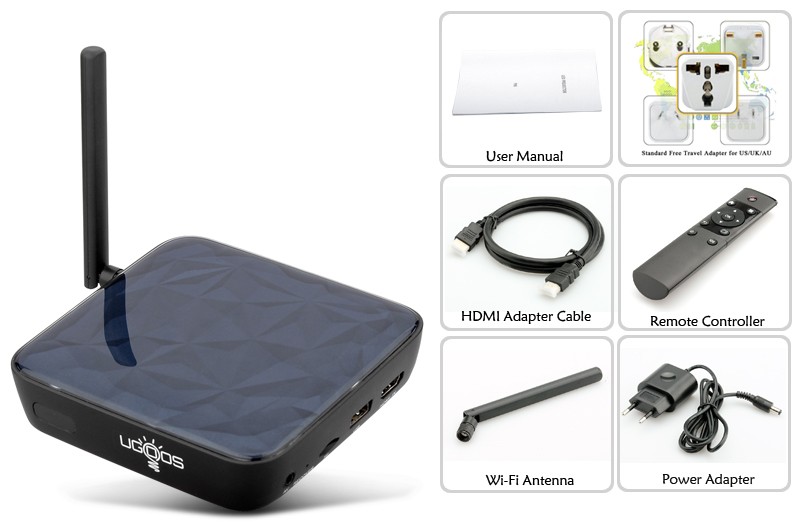

Accessory List:

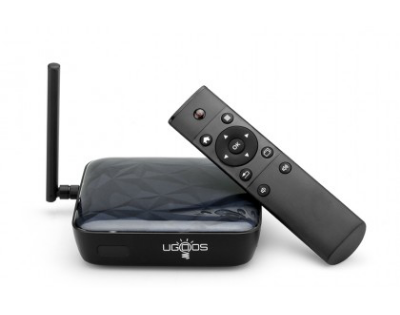

- Standard Package: 1xUT3, 1xManual, 1xAdapter(DC 5V/2A), 1xHDMI Cable, 1x IR Remote Controller, 1xDual-Band Antenna, 1xUSB OTG Cable.
- Optional Package: 2.4G Wireless Air Mouse, 2.4G Wireless mouse and keyboard, USB Cable
