Ugoos UT5 pre-release

Specs:



Operation System: Android 6.0



Languages: English...Multi-Language support

Chipset:   RK3399 28nm Dual Core Cortex-A72 + Quad Core Cortex-A53

GPU: Mali860 MP4 OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

Supports AFBC

SDRAM:   DDRIII-2133 4G

Nand Flash:    32GB Nand Flash (optional: 16/32/64GB)

Storage Extension: Support SATA, 2.5 Inch or 3.5 Inch, Max 8TB

MicroSD (TF) card, Max to 256GB

Network:    AP6359S, 2.4GHz*2/5GHz*2 Wi-Fi 802.11 a/b/g/n and 802.11 AC.

Support  LAN 10M/100M/1000M Base-T

Bluetooth:  Support BT 4.2 Module

Power Supply:  DC 12V/3A

Interfaces:

HDMI

1 x HDMI (A type Female), HDMI2.0, Support 4Kx2K decode output 60fps

USB Ports

USB3.0 x 1, Type-A x 1, USB2.0 x 2

Type-C Support appointed VR sets

Fiber-optical Output  1 x SPDIF

Card Reader  1 x TF

SATA 1 x SATA

Network port    1 x RJ45

Power Supply   1 x DC Jack

Antenna  Wi-Fi external 5 dB antenna *3

Media Parameters:

Video Decoder H.265 4096*2304 60fps

H.264 4096*2304 60fps

VP9 4096*2304 60fps‏

MPG4 1920*1080 60fps

Full video format decoding support:

Formats MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC

Video Encoder  H.264, MOV, 3GP

RV, VP6/VP8, Sorenson Spark, MVC

Video Output    HDMI output: Support 4Kx2K (4096x2304) @60HZ HDR

H.265 Data Rate

Up to 60fps.



Software Extension   Support Play market & APK install.

Protocols:

Support DLNA, Miracast Protocol, Support DRM requirement, airplay, Audio push.

Certificates: CE, RoHs.

New RockChip3399 gives incredible abilities for mobile platforms and mini PC devices.  Rockchip has unveiled the RK3399 processor back at CES 2016 and this SoC now becomes a heart for new Chromebooks performed by ASUS.

As you can see from the specs this is our first Branded TV Box with SATA port and HDD holder. Device will able to connect 2.5 and 3.5 inch hard drives.

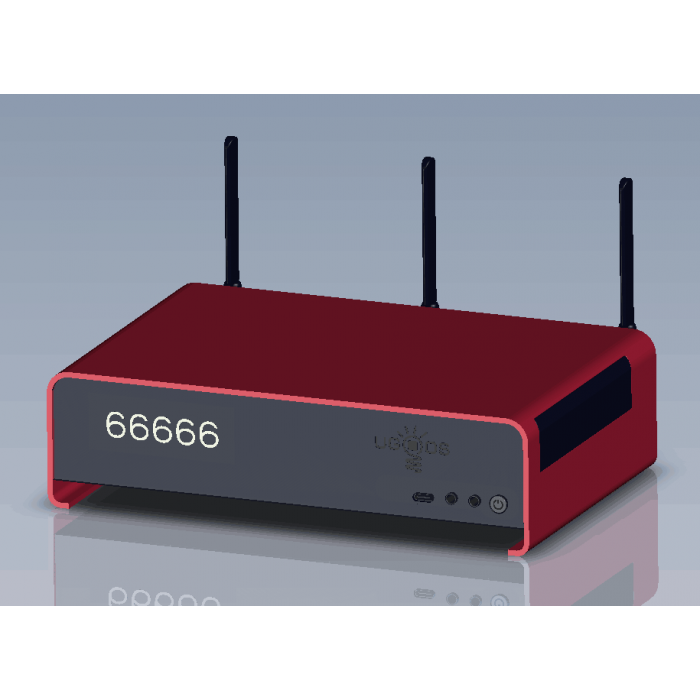

Here is a render of a future housing case for Ugoos UT5

As you can see, we built small OLED screen in order to display status messages and some additional information. USB type-C port we placed on front panel for more convenience.

Test results of UT5 PCBA with Ugoos firmware will be a little bit later, now you can check unnamed boards’ tests on Geekbench

Some research information about SoC you can find on cnx-software.com

Ugoos UT5 will be presented on CES 2017 in Las Vegas next January. Everybody will be able to test device and left quote for pre-order. Pre-order is also available on Ugoos website.


Find us:

Facebook

Twitter

Youtube


Comment(S) (7)

  • Comment by R. D. | Saturday, Dec 24 2016, 08:54AM

    Been waiting to hear of Ugoos' RK3399. Exciting, I'll be following closely.

  • Comment by Jan Kwikkel | Saturday, Dec 24 2016, 05:53PM

    Hello, I hope this time a decent and proper fully informative software install/hardware USER MANUAL in a normal readable format will be added in the UT5 box? I have bought the UT4 version and that little leaflet user manual is truly a joke. Btw: i have not used the UT4 unit for what it is meant for because of serious harware/software error issues. Power on/off problems / the basic 2 launchers and android system does not keep the Kodi/exodus/XBMC downloaded files/add-ons and icons stable. Need to re-download the sw frequently. A pain in the @ss ;) Xmas/Ny

  • Comment by Alex | Tuesday, Dec 27 2016, 07:18PM

    Hello, Can you tell me where I can preorder the UGOOS UT5 ? I live in the netherlands and like to test is. Regards, Alex

  • Comment by Scooter2014 | Thursday, Jan 12 2017, 11:26PM

    Go to this site will help you with anything you need re Ugoos workings and updates and how to do things if needed. very friendly site, www.freaktab.com

  • Comment by Casey | Tuesday, Jan 17 2017, 06:50PM

    Expected price will be..?

  • Comment by Casey | Saturday, Jan 28 2017, 12:46AM

    I've found an expected price in the ugoos USA website - it might be a place holder but... $349??? F that! I can buy a decent i3 or i5 laptop and dedicate that as a TV box and be better off! Drop the stupid and useless AMOLED screen and drop the price by $150!!

  • Comment by R. D. | Sunday, Jun 18 2017, 03:24AM

    Hello Team Ugoos, when is the UT5 expected to launch? Thanks.
