Hardware Specs: |
Operation System |
Android 4.4/5.1.1 (Linux Ubuntu or Dualboot is optional) |
Language |
Chinese,English...Multi-Language support |
Chipset |
RK3288 28nm Cortex-A17 Quad core 1.8ghz |
GPU |
Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 4Kx4K output |
SDRAM |
DDR3 2GB (optional:1GB/2GB) |
Nand Flash |
16GB Nand Flash(optional:8/32/64GB) |
Storage Extension |
Support Micro SD(TF), Up to 32GB |
Network |
2.4GHz/5GHz WiFi 802.11 b/g/n and 802.11 a/c. Support LAN 100M/1000M Base-T |
Bluetooth |
4.0 |
Power Supply |
DC 5V/3A |

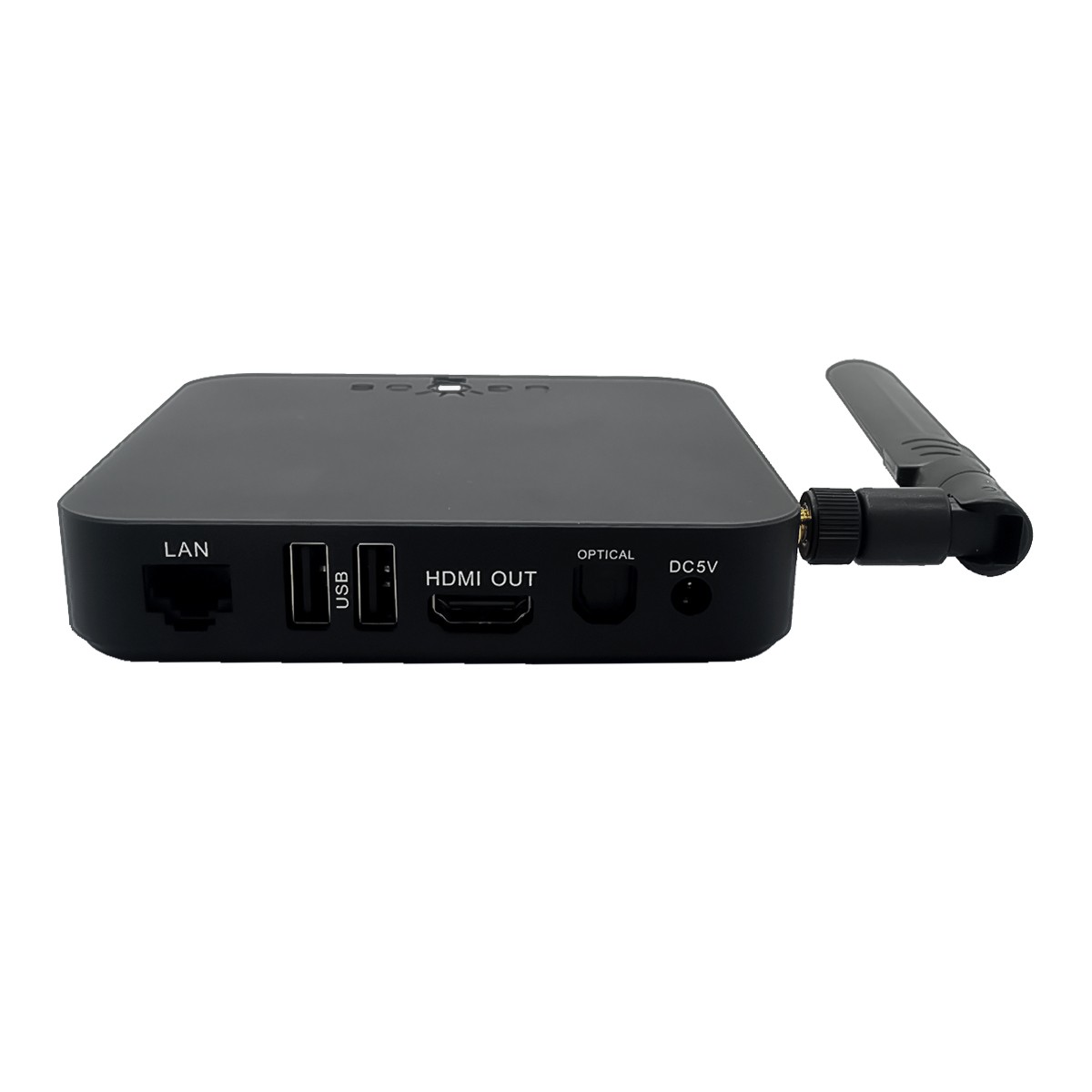

Interface: |
HDMI |
1 x HDMI Out (A type Female), HDMI2.0, Support 4K×2K decode output |
USB Port |
4 x USB Host |
Data Output |
1 x SPDIF |
Card Reader |
1 x Micro SD card (MMC card) reader |
AV Out |
1 x 3.5mm Headphone Jack |
Network |
1 x RJ45 LAN Port |
Power Supply |
1 x DC Jack(2.1mm) |
Antenna |
External DualBand WiFi Antenna |
Media Parameter: |
Audio Container |
Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display. |
Audio Out |
HDMI Data Output |
Video Decoder |
MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, |
Full video format decoding support. Support H.265 hardware decoding. Support format MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1,
RV, VP6/VP8, Sorenson Spark, MVC |
Video Encoder |
H.264, H.265, VP8, MVC(1080P) |
Resolution |
HDMI output: Support 4Kx2K ( 3840*2160) |
H.264, H265 Data Rate: |
Up to60Mbps |
Image Browser |
Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192x8192. |
Text-Reading |
Support TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install). |
Software Extension |
Support Google Play APK install |
DLNA,Wimo Protocol |
Support DLNA,Wimo Protocol |
Remote Control |
Support Smart phone remote control、2.4GHZ wireless air mouse/Remote controller. |
IM Software |
Support Skype/QQ/MSN/GTALK (Depends on APK install) |
Office Software |
WORD/EXCEL/PDF(Depends on APK install) |
Certificate |
CE, FCC |
Other Parameters: |
Operation Temperature: |
-10~40℃ |
Storage Temperature: |
-20~50℃ |
Humidity Environment |
5%-90%(No condensation) |
|
|
Package: |
Dimension |
116*115*22mm |
Net Weight |
285gm |
Carton Box Size |
|
Gift Box Size |
155*145*85mm |
Gross weight |
815gm |
