Description:

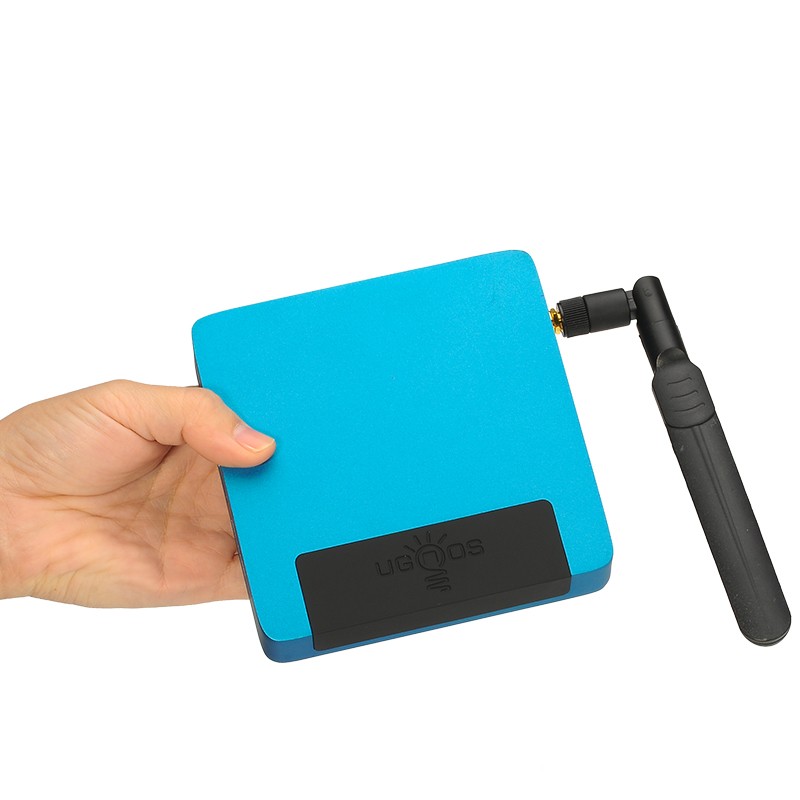

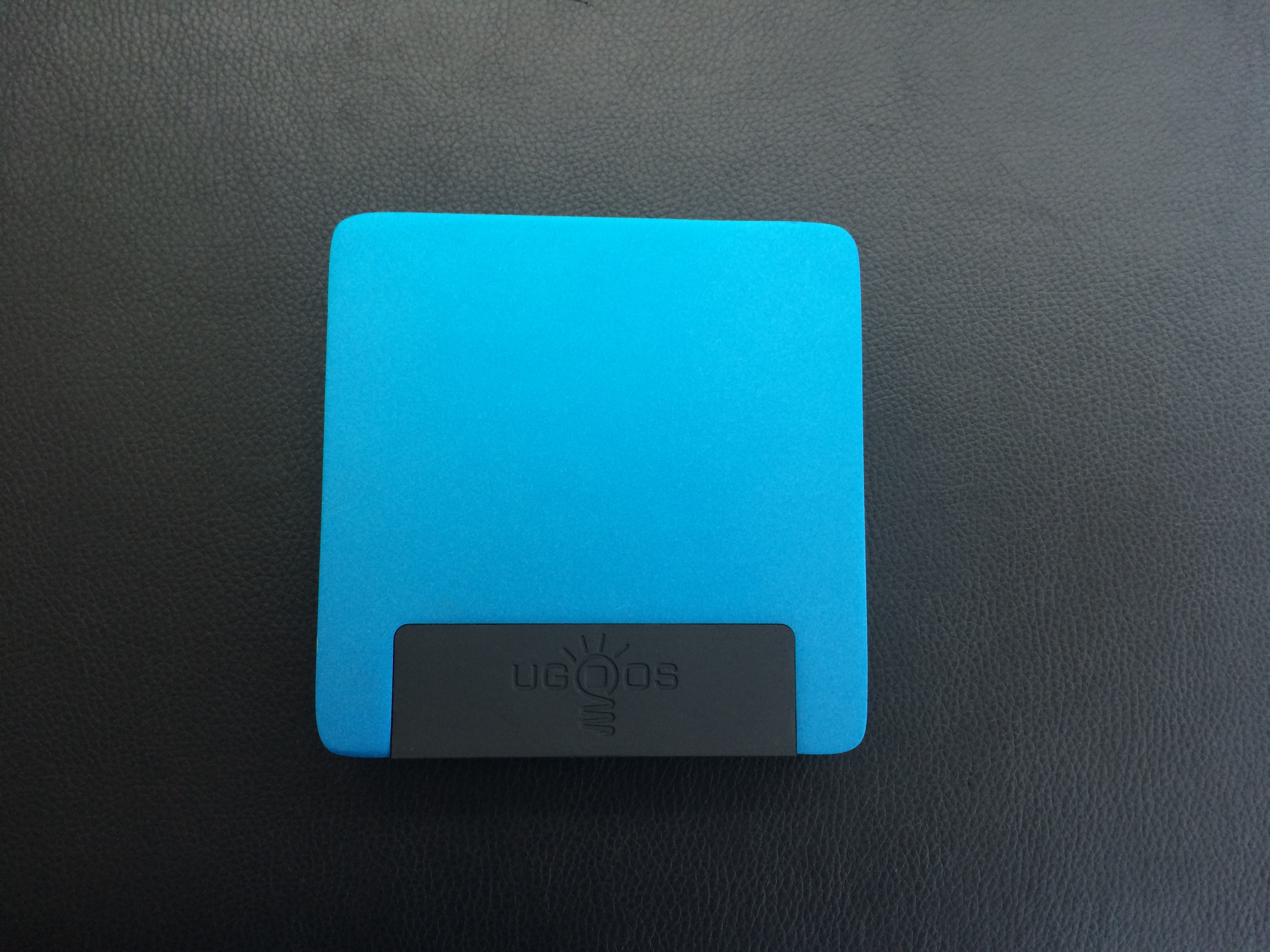

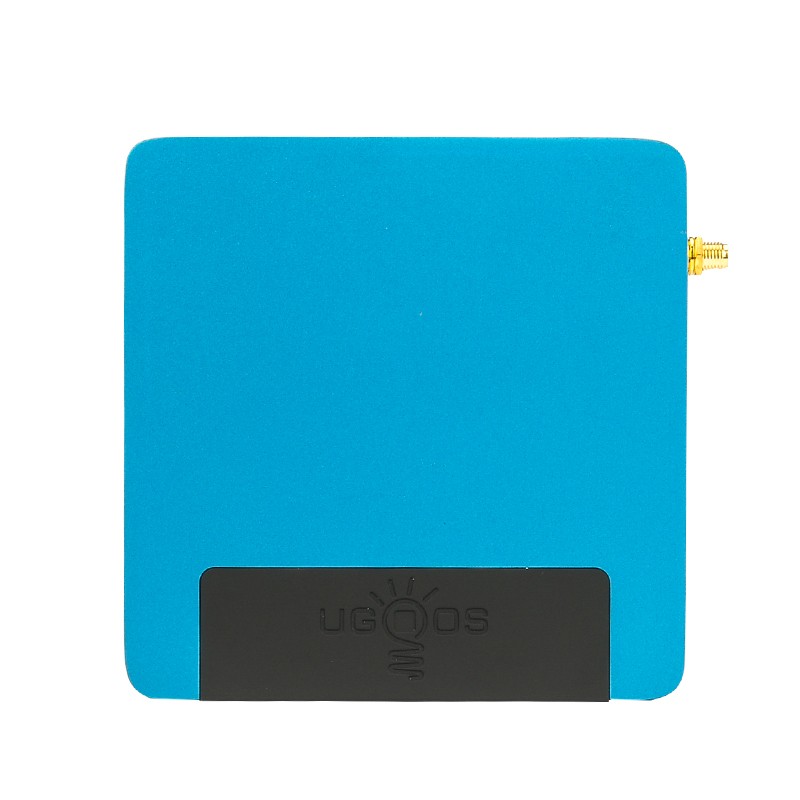

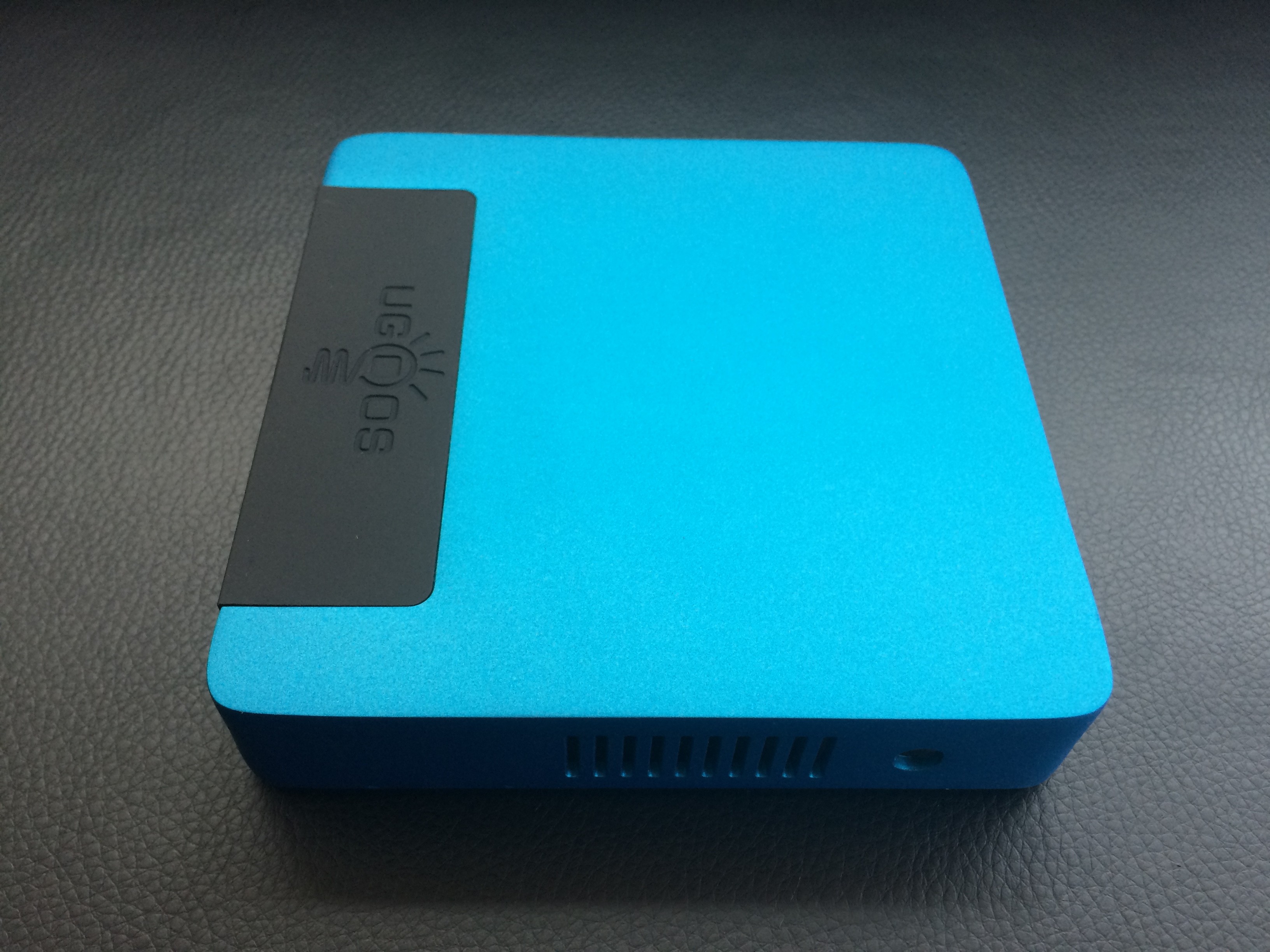

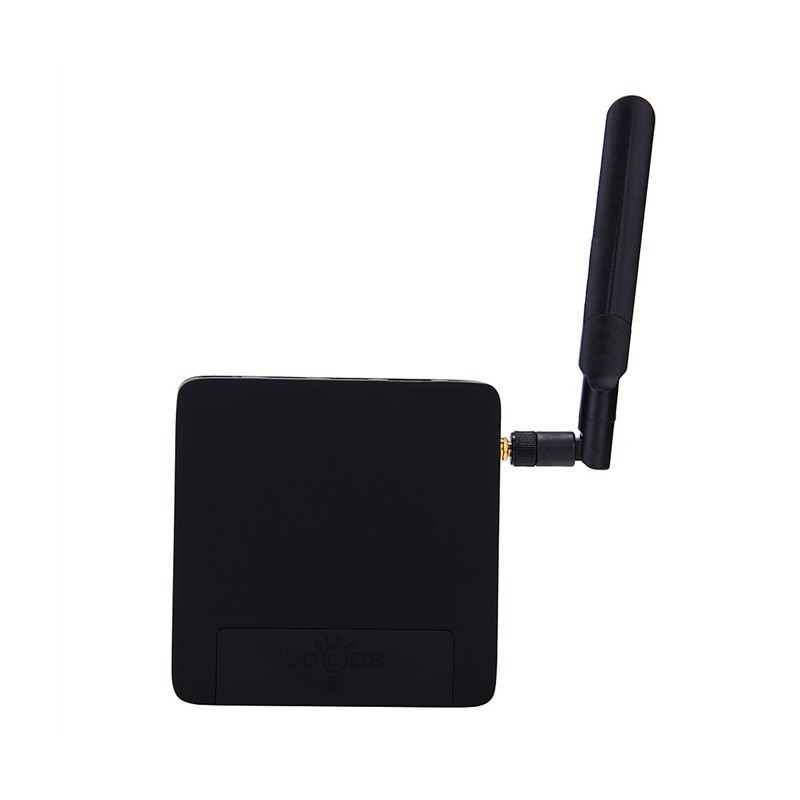

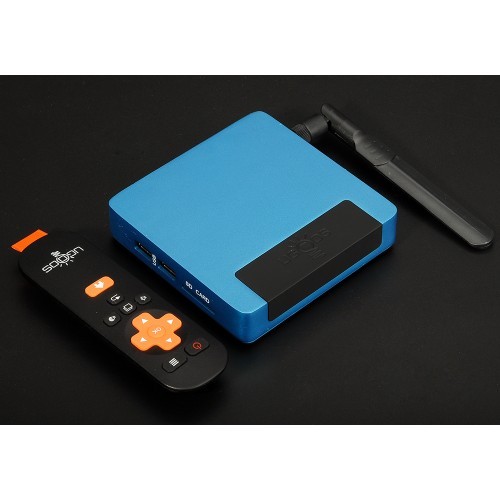

Ugoos Brand AM1 Box - New metal housing 2G+16G Android 5.1/6.0.1 64 bit Quad-Core 4K Amlogic S905 Smart TV Box with High Quality Firmware, Dualband 2.4/5Ghz WIFI, Bluetooth 4.0. H.265 Hardware Playback and 4K Output Support.
Hardware Spec:
Ugoos Brand AM1 Box - New metal housing 2G+16G Android 5.1/6.0.1 64 bit Quad-Core 4K Amlogic S905 Smart TV Box with High Quality Firmware, Dualband 2.4/5Ghz WIFI, Bluetooth 4.0. H.265 Hardware Playback and 4K Output Support.
| Hardware Spec: |
| Operation System |
Android 5.1.1 / 6.0.1 |
| Language |
Chinese, English...Multi-Language support |
| CPU |
(S905)Quad-core ARM Cortex-A53 up to 2.0GHZ (DVFS) |
| GPU |
Penta -core ARM Mali 450 GPU up to 750MHz+ (DVFS),OpenGL ES1.1/2.0, Open VG 1.1 , 2250Mpix/sec and 165Mtri/sec |
| SDRAM |
DDR3 2GB |
| Flash |
16GB |
| Network |
2.4GHz/5GHz WiFi 802.11 a/b/g/n/ac. Support LAN 100M/1000M Base-T |
| WIFI Module |
AP6335 |
| The extended storage |
SD Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0) |
| Power Supply |
DC 5V/3A 3.5mm DC-in |

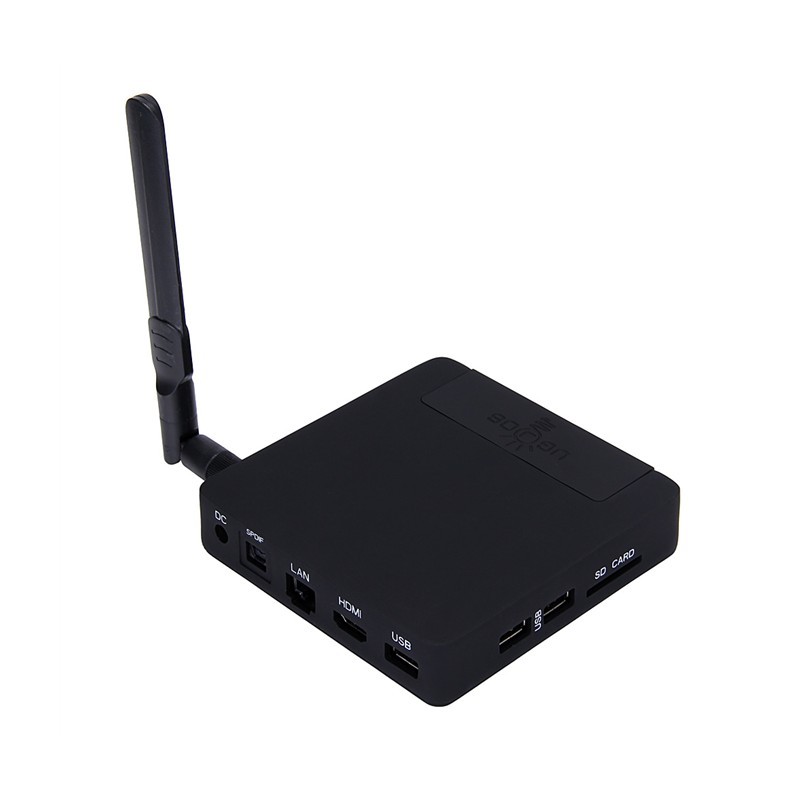

| Interface: |
| HDMI Output |
HDMI( 2.0 ) to support maximum 4K@60fps
output(HDCP2.2) |
| USB Port |
3*USB 2.0 Host |
| Data Output |
1*SPDIF |
| Led work light |
support |
| Network |
1*RJ45 1000M (Gigabit network) |
| Power Supply |
1*DC Jack |
| US Camera |
Support external USB camera 200W / 500W（option） |
| Media Parameter: |
| Audio Container |
MP3,AAC,WMA,RM,FLAC,OGG |
| Audio Out |
HDMI Data Output/SPDIF |
| Video CODEC |
H.265 HEVCMP-10@L5.1 up to 4K*2K@60fps
H.264 AVC HP@L5.1 up to4K*2K@60fps
H2.64 MVC up to4K*2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 5P/MP/AP up to 1080P@60fps
AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
Realvideo 8/9/10 up to 1080P
WebM up to VGA
Multiple languages and multiple format sub-title video support
MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation, and transition effects
Support *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm
and *.jpg file formats |
| Software Extension |
Support Google Play & APK install |
| DLNA, Miracast Protocol |
Support DLNA, Miracast Protocol |

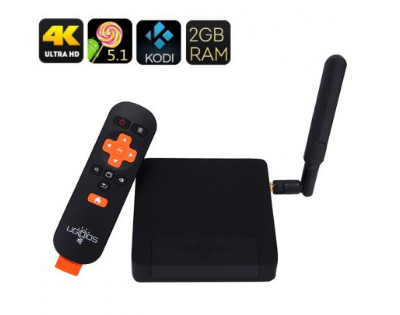

| Remote Control |
Remote controller |
| IM Software |
Support Skype/QQ/MSN/GTALK (Depends on APK ） |
| Offic Software |
WORD/EXCEL/PDF(Depends on APK install) |
| Others Parameters: |
| Operationg Temperature |
0~70℃ |
| Storage Temperature |
-10~70℃ |
| Humidity environment |
5%-90%(No condensation） |
| Package ： |
| Dimension |
118*118*25mm |
| Weight |
280gm |
| Gift Box Size |
155*145*85mm |
| Gross weight |
750gm |

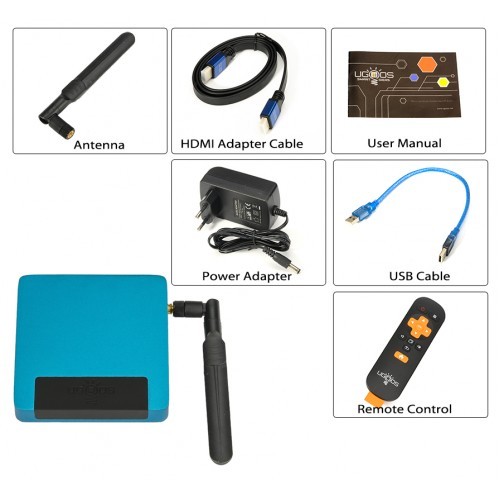

Accessory List
- Standard Package: 1xAM1, 1xManual、1xAdapter(DC 5V/3A), 1xHDMI Cable,1xIR Remote Controller, 1xDual-Band Antenna, 1xUSB OTG Cable.
